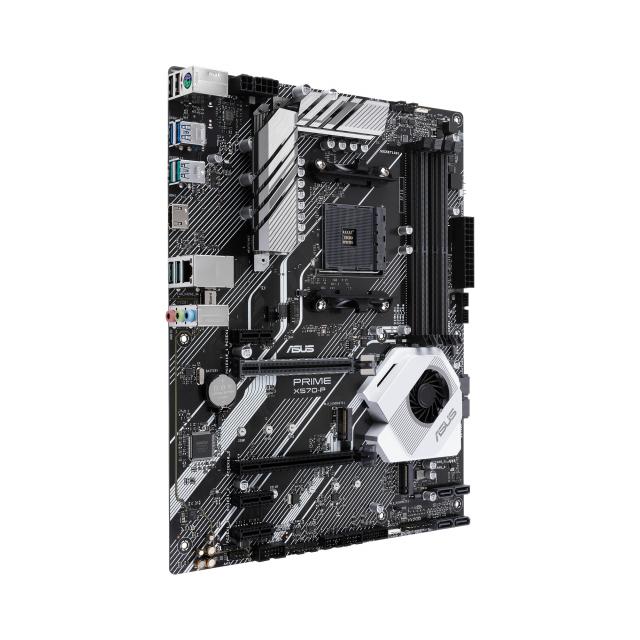

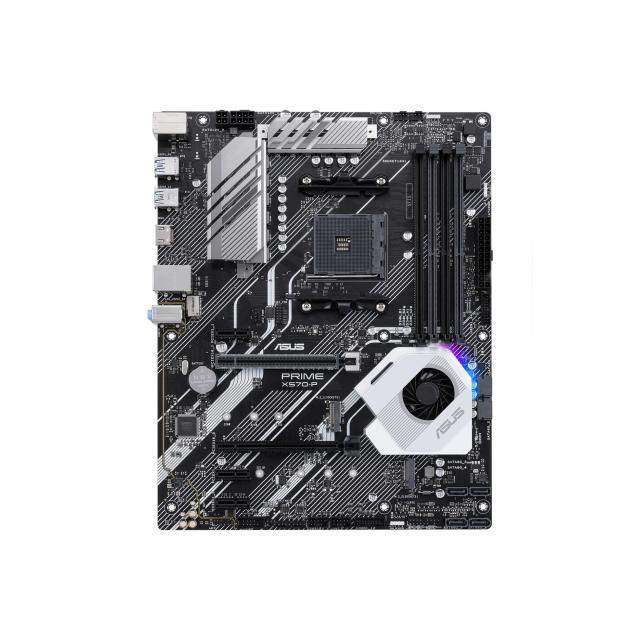

Дънна платка ASUS PRIME X570-P

Asus

Дънна платка ASUS Prime X570-P socket AM4, 4xDDR4, Aura Sync, PCIe 4.0

  • AMD AM4 Socket: Ready for 3rd and 2nd Gen AMD Ryzen™ processors
  • Enhanced power solution: 8+4 DrMOS power stages, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
  • Industry-leading cooling options: Comprehensive controls for fans and AIO pump, via Fan Xpert 4 or the acclaimed UEFI
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
  • Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB 3.2 Gen 2 ports
  • Aura Sync RGB header: Synchronize RGB header with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips

лв.390.00

ТЕХНИЧЕСКИ ДЕТАЙЛИ
ПРОИЗВОДИТЕЛ ASUS
МОДЕЛ Prime X570-P
БАРКОД 4718017263818
ГАРАНЦИЯ 36 месеца
CPU SOCKET AM4
ЧИПСЕТ AMD X570
ПОДДЪРЖАНИ ПРОЦЕСОРИ AMD Socket AM4, support for: 3rd Generation AMD Ryzen™/ 2nd Generation AMD Ryzen™ / 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics / AMD Ryzen™ with Radeon™ Vega Graphics
ФОРМ ФАКТОР ATX
ПОДДЪРЖАНА ПАМЕТ DDR4
МАКСИМАЛЕН КАПАЦИТЕТ RAM ПАМЕТ 128 GB
СЛОТОВЕ ПАМЕТ 4
ЧЕСТОТА ПАМЕТ 4400(O.C.), 4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3733(O.C.), 3600(O.C.), 3466(O.C.), 3400(O.C.), 3200, 3000, 2933, 2800, 2666, 2400, 2133
ПОДДРЪЖКА НА DUALCHANNEL Да
ГРАФИЧНА КАРТА Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU
ВГРАДЕНО АУДИО Realtek S1220A 8-channel high definition audio CODEC
ВГРАДЕН LAN Realtek RTL8111H chip (10/100/1000 Mbit), ASUS LAN Guard
СЛОТOВЕ PCI-E X16 2 x PCIe 4.0/3.0 x16
СЛОТOВЕ PCI-E X1 3
ИНТЕРФЕЙС SERIAL ATA 6 x SATA3 6.0 Gb/s
М2 СЛОТ 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0/3.0 x4/x2 SSD support), 1 x M.2 Socket 3 with M Key type 2242/2260/2280/22110 SATA and PCIe 4.0 x4 SSD support)
ПОДДРЪЖКА НА RAID 0,1,10
КОНЕКТОР ЗАХРАНВАНЕ 1 x 24-pin, 1 x 8-pin, 1 x 4-pin
ВИДЕО СЛОТ PCI Express
МУЛТИ GPU ТЕХНОЛОГИЯ AMD 2-Way CrossFireX Technology

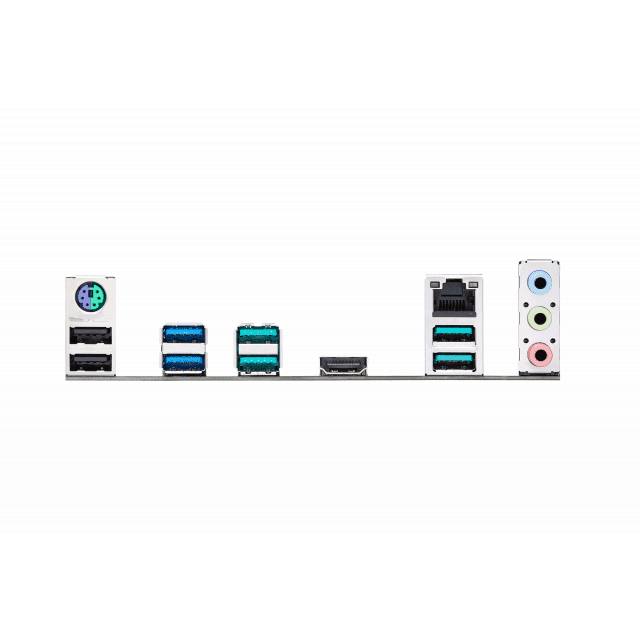

СВЪРЗАНОСТ 1 x PS/2, 1 x HDMI, 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 2 x USB 2.0, 1 x RJ-45, 3 x audio jack’s
USB 3.2 6
USB 2.0 2
КОМПЛЕКТЪТ ВКЛЮЧВА Ръководство, I/O Shield, 2 x SATA 6Gb/s кабели, Диск с драйвери
ДРУГИ 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Чипсет

AMD X570

Форм фактор

ATX

Интерфейси

M.2 (SATA), PCI конектор, SATA 3.0

Марка

Поддържана памет

DDR4

Портове

HDMI, USB 3.0

Брой слотове за памет

4

Сокет

AM4
